Premium Quality Replacement Part
Primary Drive Clutch Rebuild Kit
For Polaris Models:
Sportsman 500 EFI 2006-2010
Sportsman X2 500 EFI / Quad 2006-2009
Sportsman 500 HO EFI 2008-2013
Sportsman Touring 500 EFI HO 2008-2013
Sportsman Forest 500 EFI 2011-2014

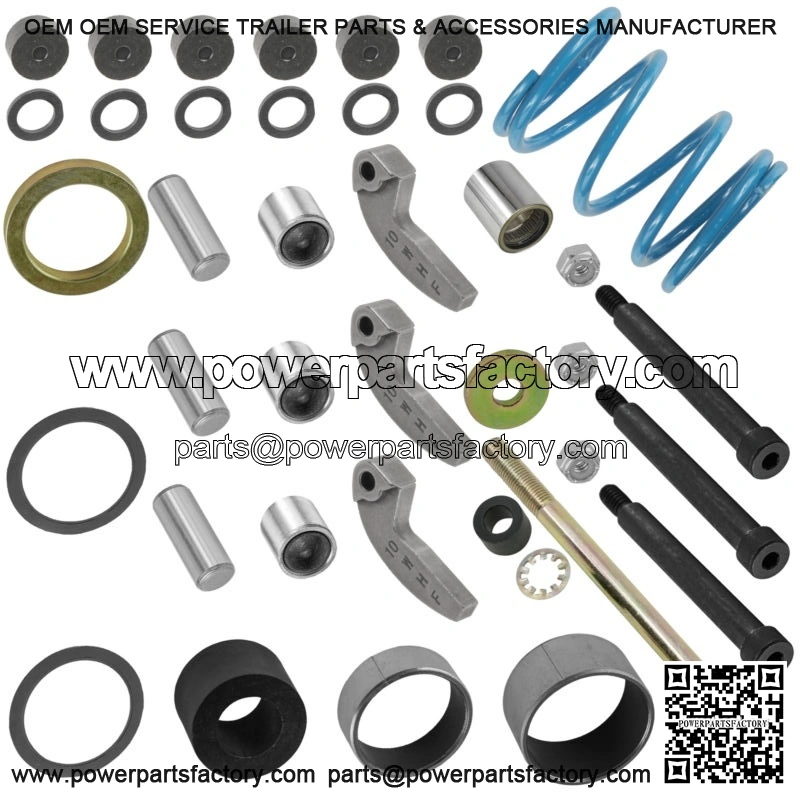

Order Includes:

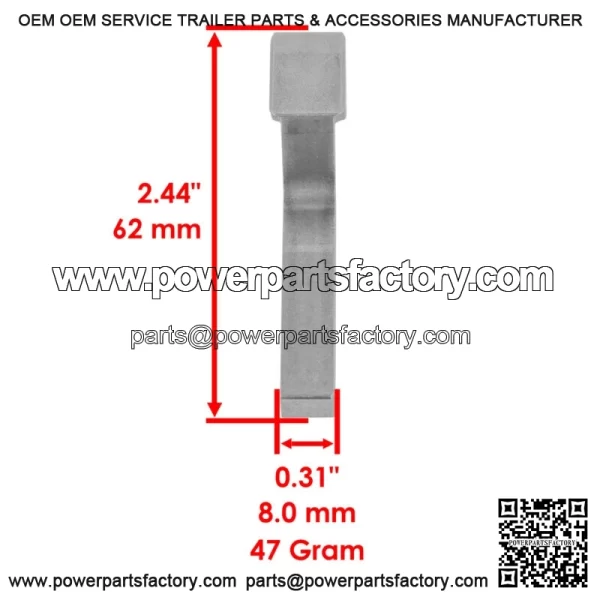

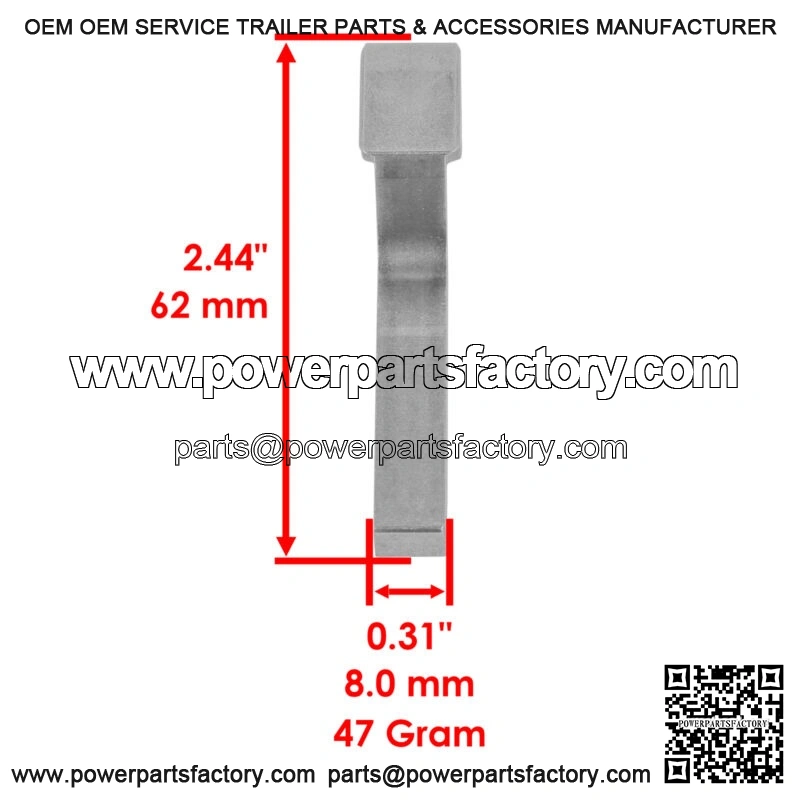

3 x Clutch Weight : 5632283
Length : 62 mm – 2.44″
Width : 8.3 mm – 0.31″
Weight Code: 10WHF
Weight : 47 Gram

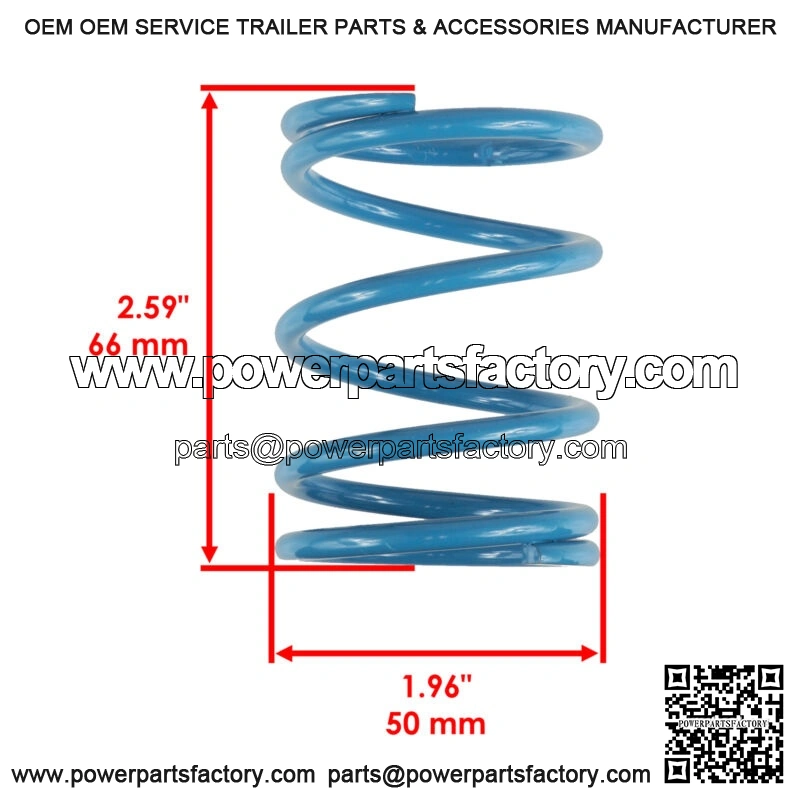

1 x Clutch Spring : 7041157
Length : 66 mm – 2.59″
Width : 50 mm – 1.96″
3 x Roller : 1321622
Outer Diameter : 14.3 mm – 0.56″
Inner Diameter : 9.5 mm – 0.37″
Width : 14 mm – 0.54″

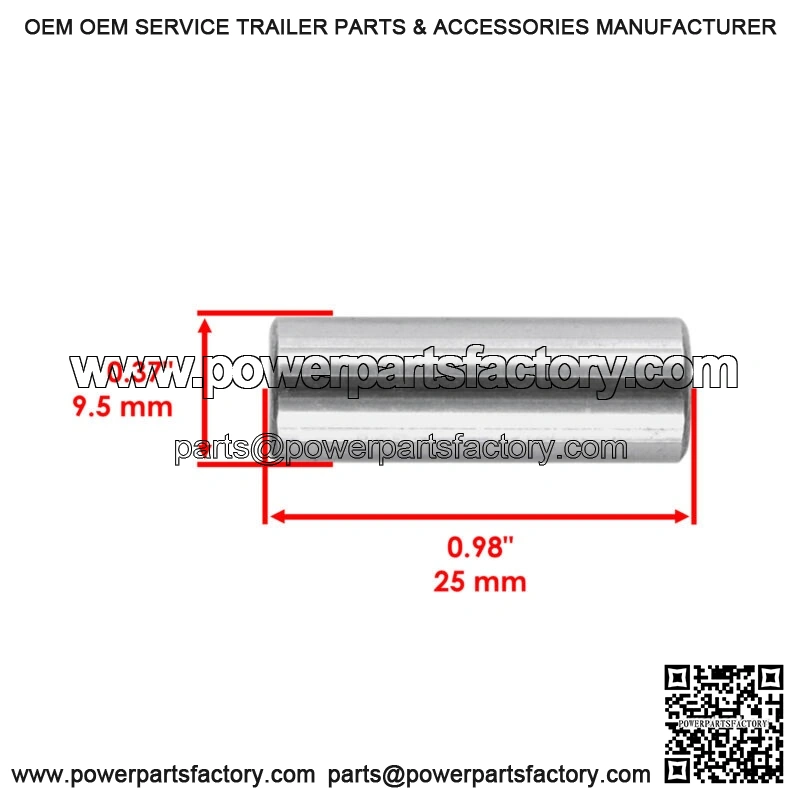

3 x Roller Pin : 5020422
Length : 25 mm – 0.98″
Outer Diameter : 9.5 mm – 0.37″
6 x Roller Washer : 5430945 5438247
Outer Diameter : 14.6 mm – 0.57″
Inner Diameter : 9.6 mm – 0.37″
Thickness : 1.5 mm – 0.059″
6 x Button : 5431936 5439254
Outer Diameter : 14 mm – 0.55″
Width : 6.5 mm – 0.25″
3 x Shoulder Bolt : 7512266
Length : 63.8 mm – 2.51″
M5x1.0
3 x Nut : 7541906 3235320
Inner Diameter : 4 mm – 0.15″
Height : 6.1 mm – 0.24″
M5x1.0
2 x Washer : 7556335
Outer Diameter : 43 mm – 1.69″
Inner Diameter : 34 mm – 1.33″
Thickness : 1.1 mm – 0.043″
1 x DU Bushing : 3514492
Outer Diameter : 51 mm – 2.0″
Inner Diameter : 45 mm – 1.77″
Width : 25 mm – 0.98″
1 x Bushing : 5430261
Outer Diameter : 19.4 mm – 0.76″
Inner Diameter : 11.09 mm – 0.43″
Width : 12.75 mm – 0.5″
1 x Bearing Cover : 3576510
Outer Diameter : 33 mm – 1.29″
Inner Diameter : 29 mm – 1.14″
Width : 13 mm – 0.51″
1 x Clutch Spacer : 5631903
Outer Diameter : 44 mm – 1.73″
Inner Diameter : 32 mm – 1.25″
Width : 6.4 mm | 0.25″
1 x Bolt : 7512566
Length : 170 mm – 6.69″
Thread Spec : 7/16-20

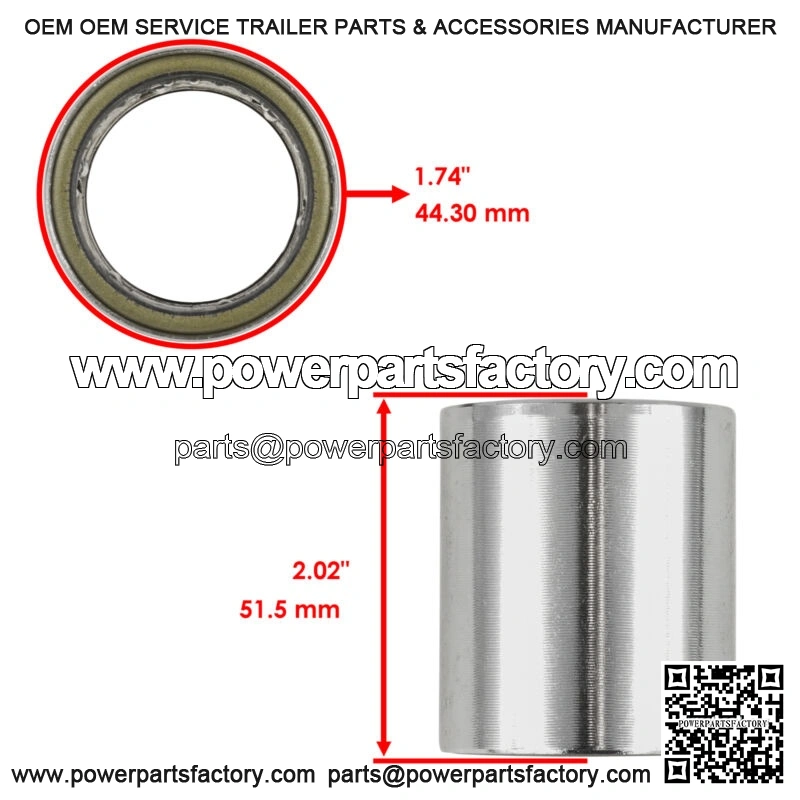

1 x EBC One Way Bearing : 1520836
Outer Diameter : 44.30 mm – 1.74″
Width : 51.5 mm – 2.02″
