Premium Quality Replacement Part
Primary Drive Clutch Rebuild Kit
For Polaris Models:
ACE 900 EFI EPS 2016
ACE 900 EPS XC 2017-2019
RZR XP 1000 2017-2020
RZR XP 4 1000 2017-2020
RZR 1000 S4 2019-2021
RZR XP 1000 High Lifter 2021-2022
RZR XP 4 1000 High Lifter 2021-2022

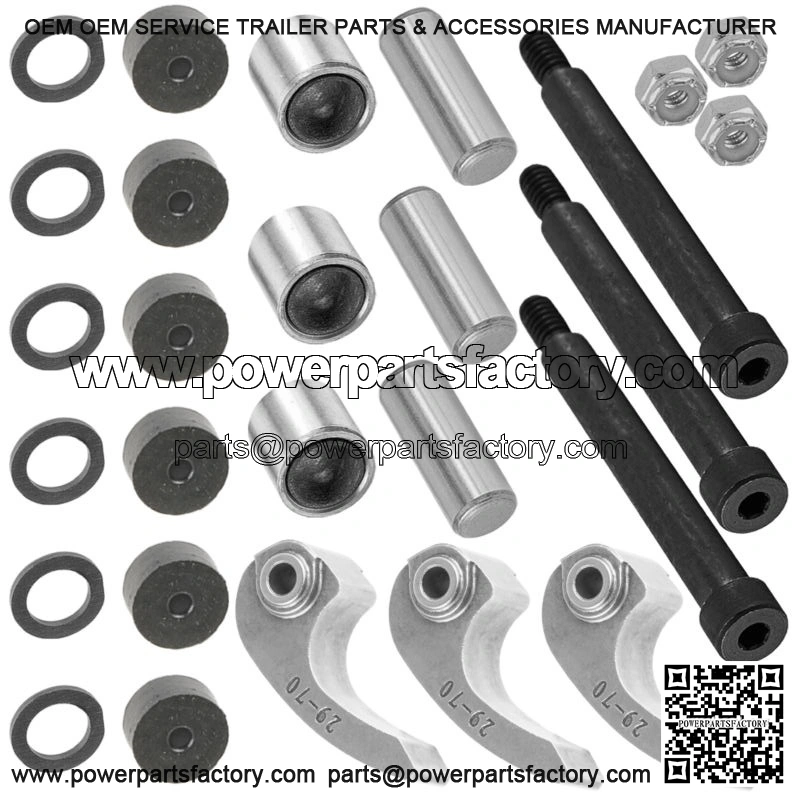

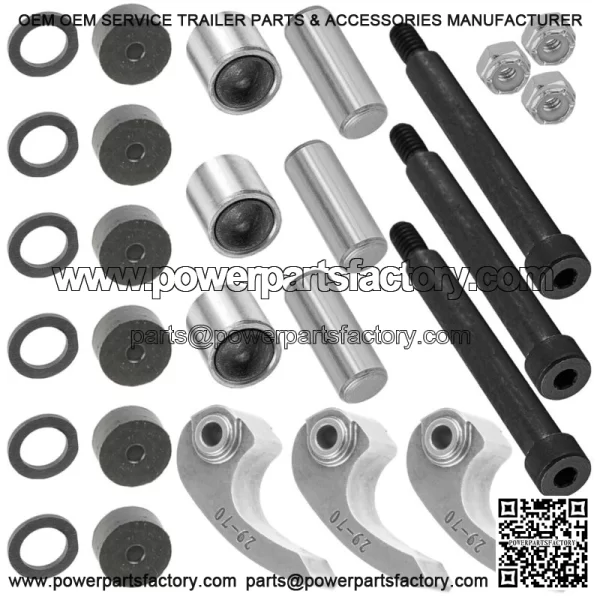

Order Includes:

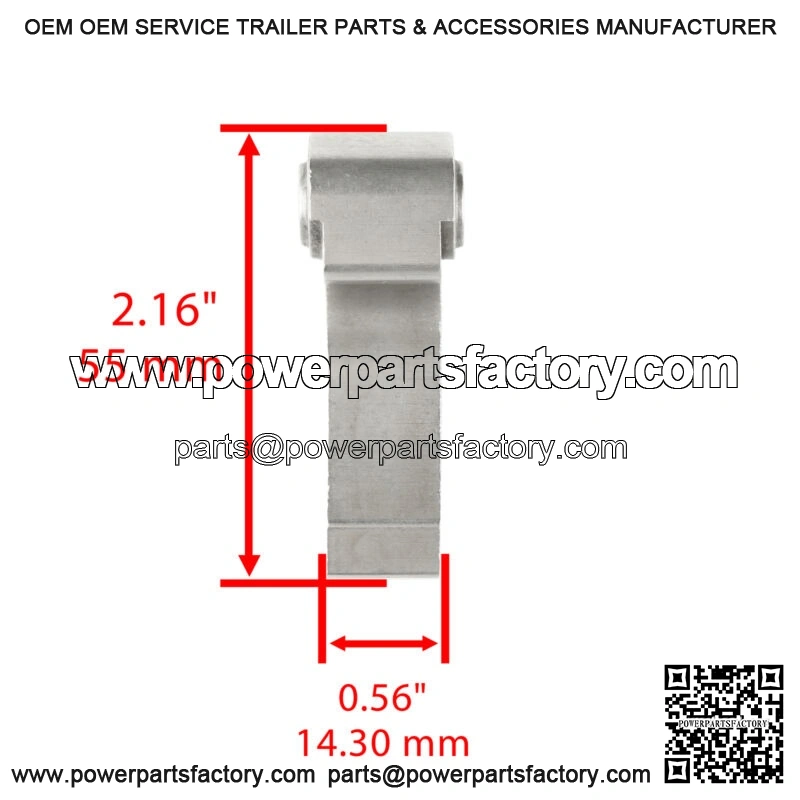

3 x Clutch Weight : 5633321
Length : 55 mm – 2.16″
Width : 14.30 mm – 0.56″
Weight Code: 29-70

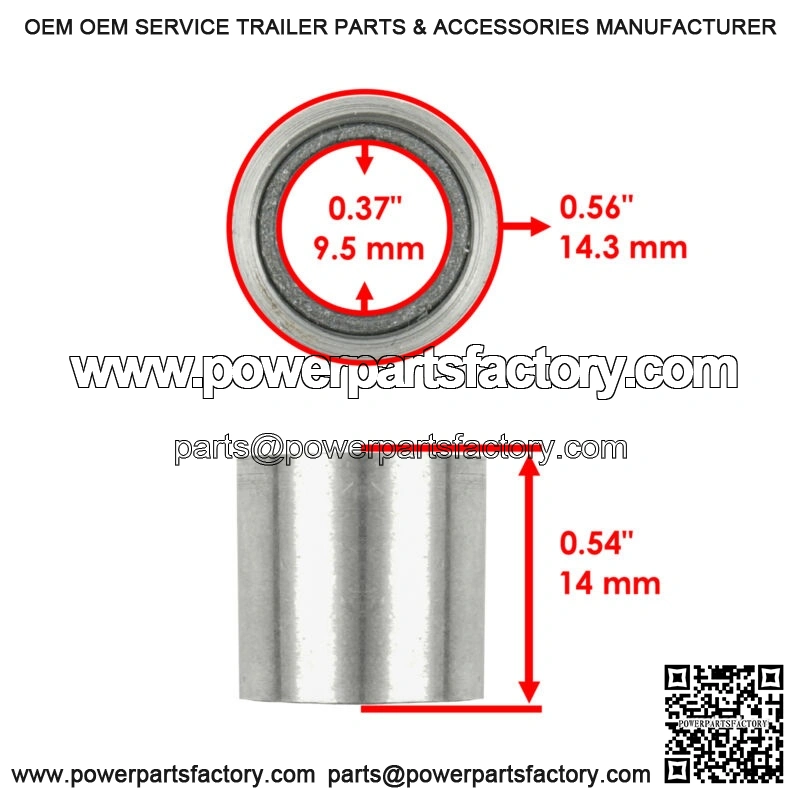

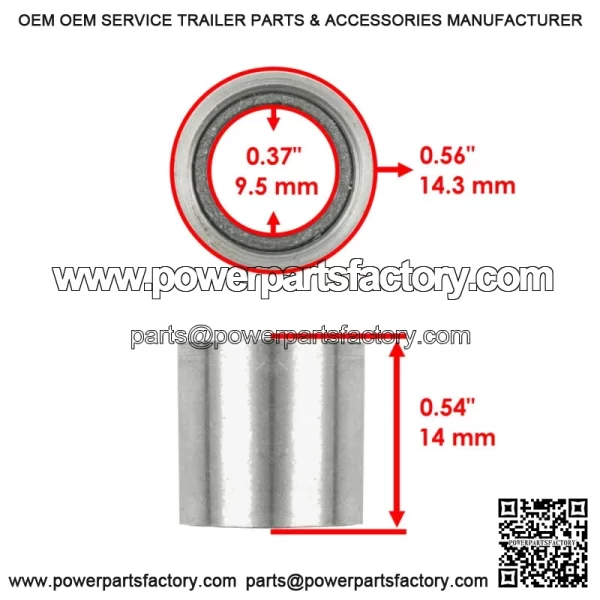

3 x Roller : 1321622
Outer Diameter : 14.3 mm – 0.56″
Inner Diameter : 9.5 mm – 0.37″
Width : 14 mm – 0.54″

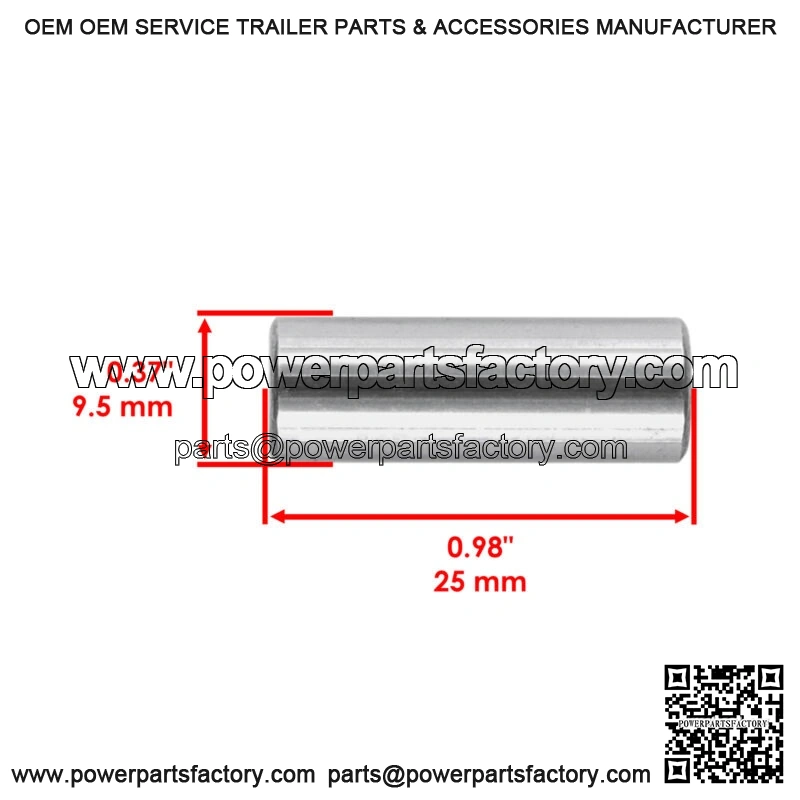

3 x Roller Pin: 5020422
Length : 25 mm – 0.98″
Outer Diameter : 9.5 mm – 0.37″
6 x Roller Washer : 5438247 5430702 5430945
Outer Diameter : 14.6 mm – 0.57″
Inner Diameter : 9.6 mm – 0.37″
Thickness : 1.5 mm – 0.059″
6 x Button | 5450940
Outer Diameter: 16.8 mm | 0.66″
Width : 6.5 mm – 0.55″
3 x Shoulder Bolt (Socket Head Cap Screw) | 7512266
Length : 63.8 mm – 2.51″
M5x1.0
3 x Nut : 7541906 3235320
Inner Diameter : 4 mm – 0.15″
Height : 6.1 mm – 0.24″
M5x1.0
