Bolt Pattern Options: 5×4.5″ or 5×5″
Features:

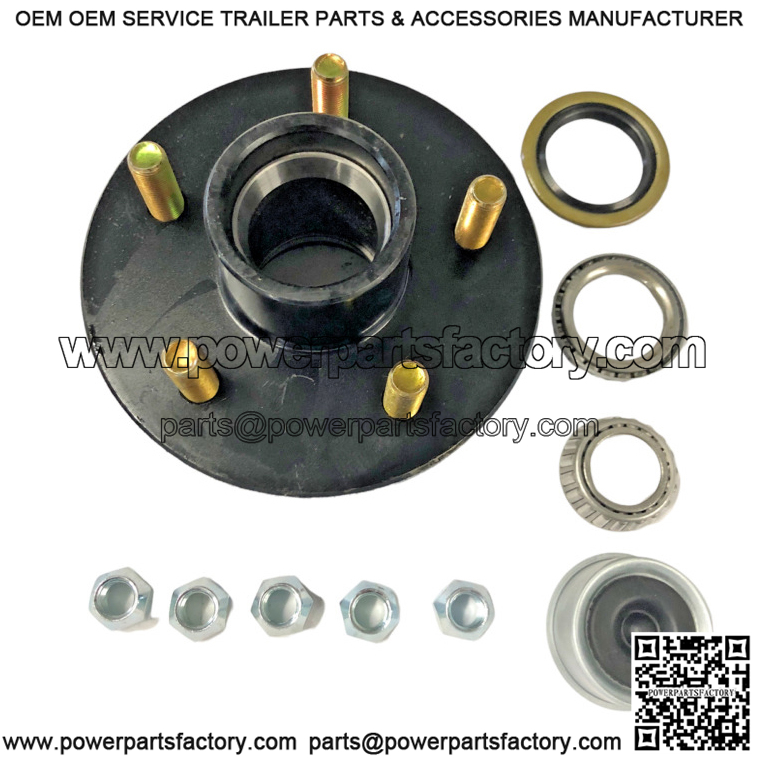

Trailer hub assembly fits idler axles
Bearings, races, seal, grease cap, and lug nuts are included
Dexter E-Z Lube and rany other Easy Grease-compatible grease cap makes lubricating bearings fast and easy
Remove rubber plug to access zerk fitting on spindle – no need to disassemble hub
Sturdy iron construction
Zinc-enriched paint finish
QAI and CSA certified
Specs:
Application: 3,500-lb Dexter E-Z Lube and any other Easy Grease trailer axles with #84 spindles
Compatible with standard axles from most manufacturers, including Dexter, Lippert (LCI), and AL-KO
Wheel size: 13″ to 15″
The 5×4.5″ bolt pattern is commonly found on 10″-15″ tires and wheels
the 5×5″ bolt pattern is commonly found on 15″ trailer tires and wheels
Bolt pattern: 5 on 4-1/2″ or 5 on 5″
Wheel stud dimensions: 1/2″ diameter x 1-5/16″ long
Grease cap flange diameter: 1.99″
Weight capacity: 1,750 lbs
Limited 1-year warranty
Bearing, Race, and Seal Information
Bearings (included)
Inner bearing: L68149 (1.378″ inner diameter)
Outer bearing: L44649 (1.063″ inner diameter)
Races (included)
Inner race: L68111
Outer race: L44610
Grease seal (included): 58846
Inner diameter: 1.719″
Outer diameter: 2.565″
