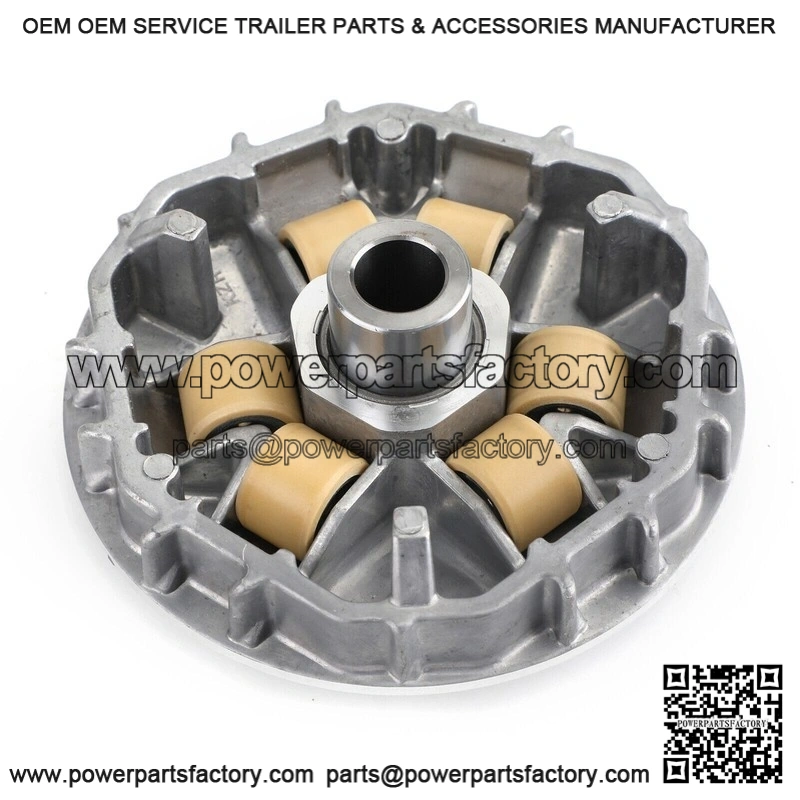

Front Primary Variator Clutch Movable /Face Drive Complete Fits Honda PCX125 PCX150 WW125 WW150 2009-2014
FEATURES:
Aftermarket 100% Brand New and Quality Guaranteed.
Adopted high quality materials that meet or exceed original requirements.
Stable characteristics, high reliability, long service life.
Professional installation will be highly recommending,instruction NOT included.

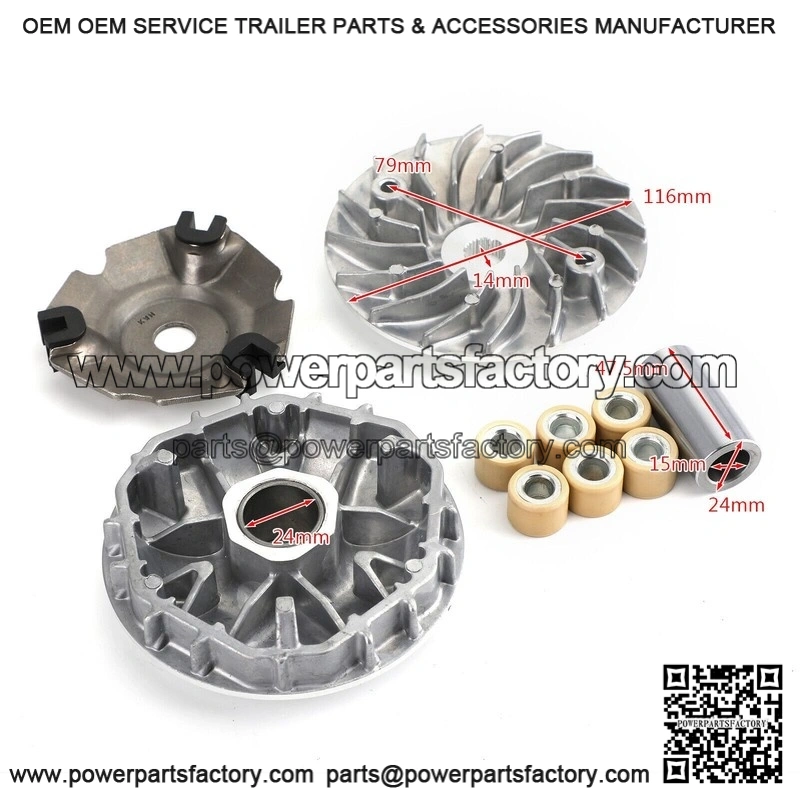

DIMENSION:
Boss,Drive Face:L 47.5mm / OD 24mm / ID 15mm
Roller Weight:L 14.7mm / OD 20mm / ID 9.5mm
Placement on Vehicle: Front
PART NUMBERS:
Piece Set, Slide(3PCS): 22011-KWN-900
Face,Drive: 22102-KWN-900,22102-KZR-600,22102-K35-V00
Boss,Drive Face: 22105-KWN-900
Face Comp,Movable Drive: 22110-KWN-900,22110-KZY-701,22110-K36-A00
Roller Set,Weight(6PCS): 22123-KWN-640,22123-KWN-900,22123-K01-900
Plate,Ramp: 22131-KWN-900
FITMNET:
Fits Honda PCX125 WW125 2009-2014
Fits Honda PCX150 WW150 2009-2013
Fits Honda PCX150 2014-2018

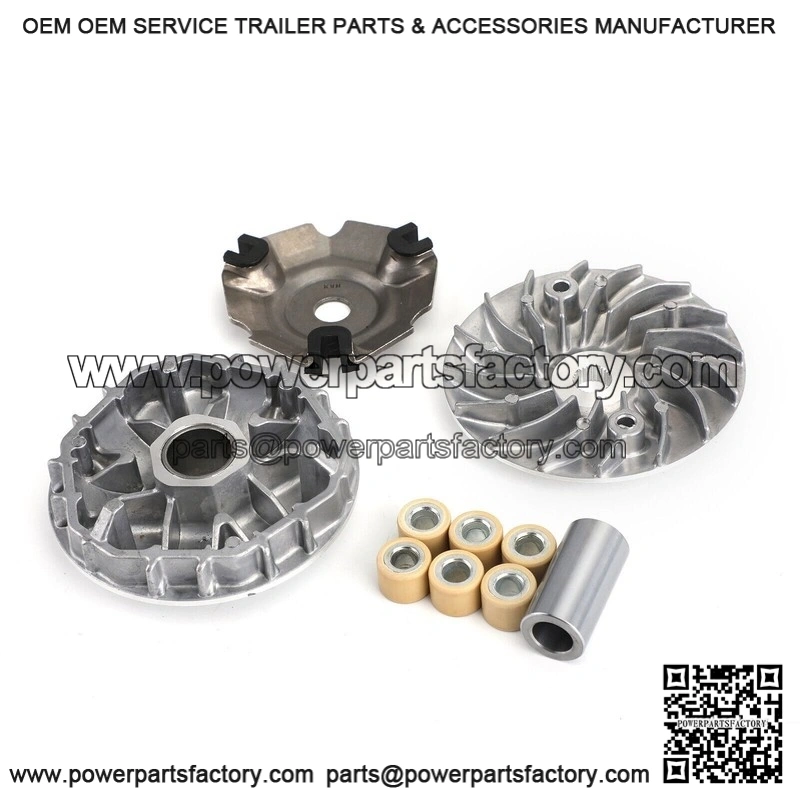

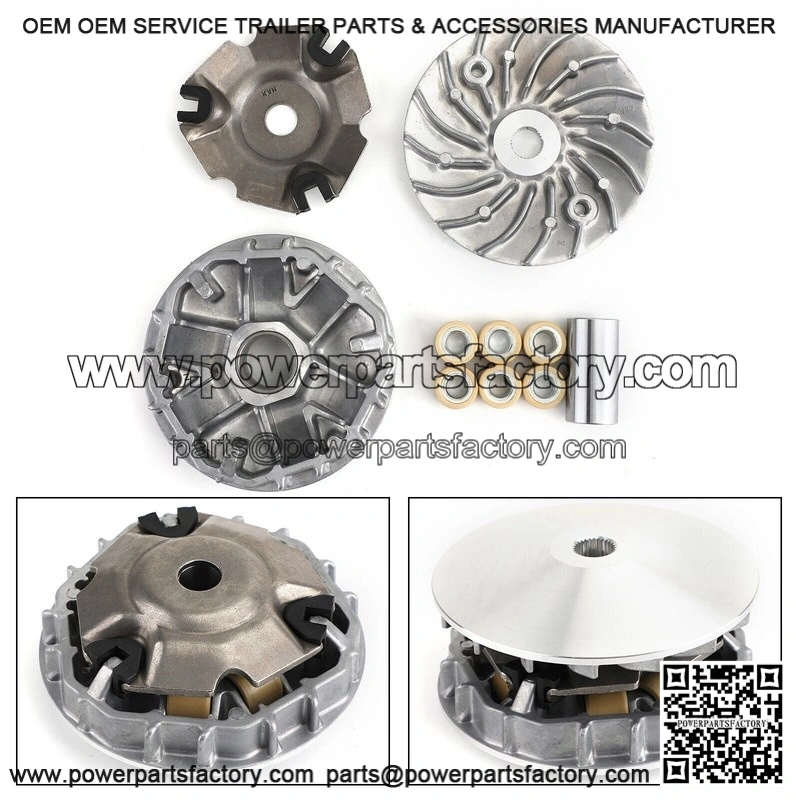

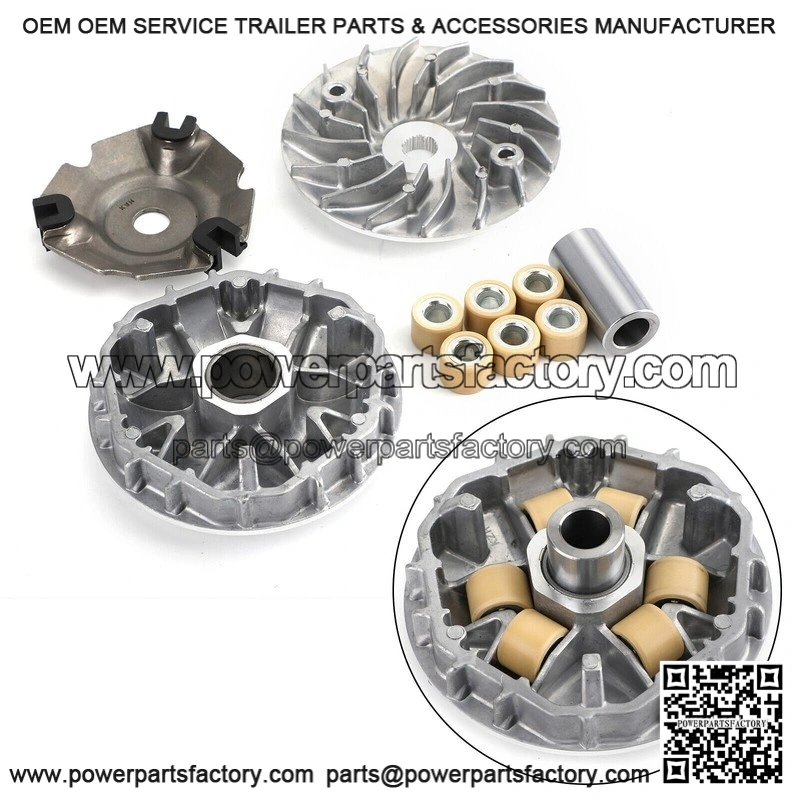

PACKAGE INCLUDED:
3x Slide
1x Drive Face
1x Drive Face Boss
1x Movable Drive Face
6x Roller Weight
1x Ramp Plate
