Premium Quality Replacement Part

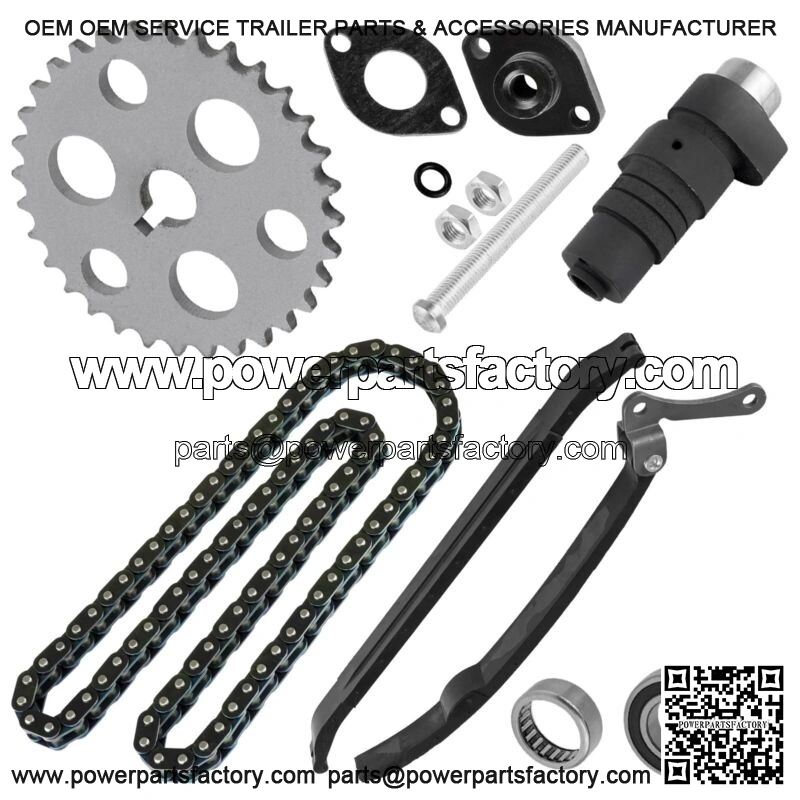

Camshaft with Bearings and Sprocket , Guides, Chain, Tensioner
Compatible with Yamaha Models:
Big Bear 350 YFM350FW 4×4 1987-1999
Big Bear 350 YFM350FH 4×4 Hunter Edition 1999
Big Bear 350 YFM350U 2×4 1996-1999
Big Wheel 350 BW350 1987-1988
Moto-4 YFM350ER 1987-1995
Order Includes:

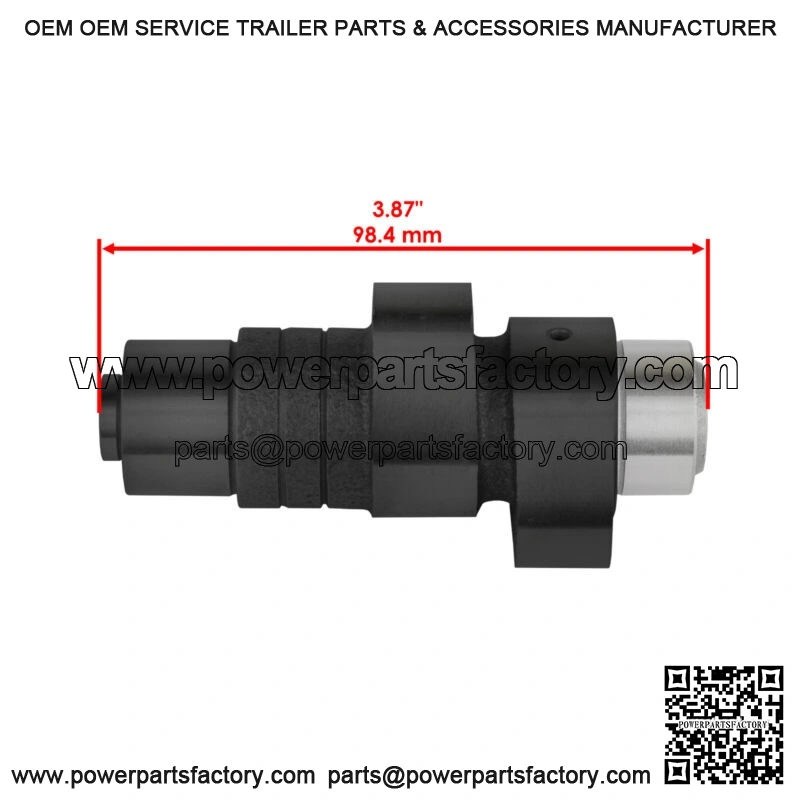

1x Camshaft: 1YW-12170-00-00
Length: 98.4 mm – 3.87 in
1x Bearings: 93315-32516-00
Inner Diameter: 25 mm – 0.98 in
Outer Diameter: 32 mm – 1.26 in
Height: 12 mm – 0.47 in
1x Bearing: 93306-00515-00
Inner Diameter: 25 mm – 0.98 in
Outer Diameter: 47 mm – 1.85 in
Height: 12 mm – 0.47 in

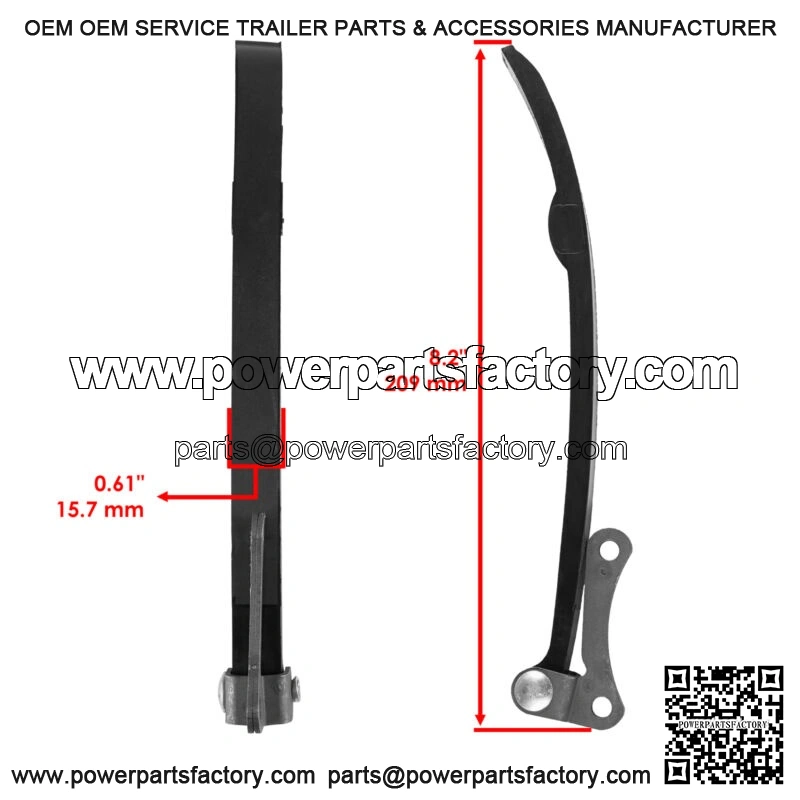

1x Guide : 1UY-12241-00-00, 1UY-12241-01-00
Height: 209 mm – 8.2 in
Width: 15.7 mm – 0.61 in

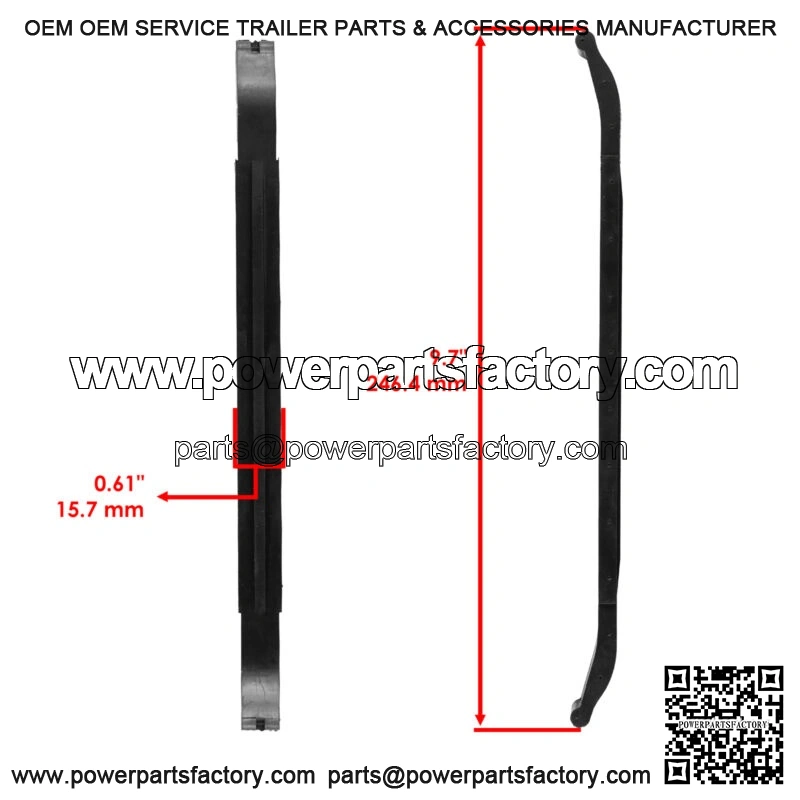

1x Guide : 3Y1-12231-01-00
Height: 246.4 mm – 9.7 in
Width: 15.7 mm – 0.61 in
1x Chain : 94500-02090-00
90 Link
1x Tensioner: 31G-12210-01-00
Length: 97 mm – 3.81 in

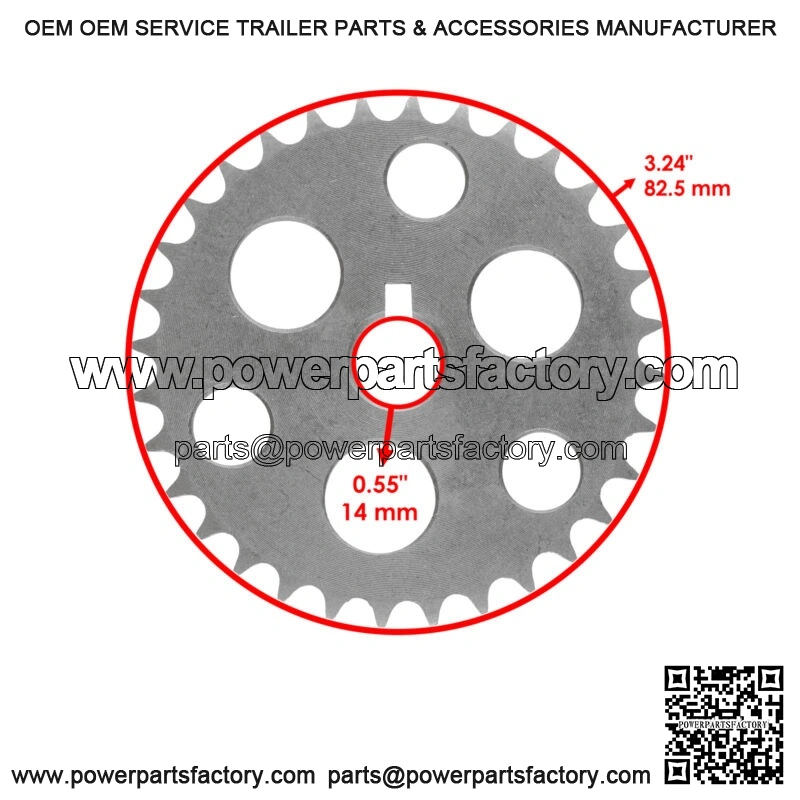

1x Sprocket : 3HN-12176-00-00
Inner diameter: 14 mm – 0.55 in
Outer Diameter: 82.5 mm – 3.24 in
