3007-152 3007-784 3007-860 3402-226 Intake & Exhaust Valve Kit For Arctic Cat
3007-152 3007-784 3007-860 3402-226 Intake & Exhaust Valve Kit For Arctic Cat
3007-152 3007-784 3007-860 3402-226 Intake & Exhaust Valve Kit For Arctic Cat
Premium Quality Replacement Part
Engine Intake &
Exhaust Valve Kit
Compatible with Arctic Cat Models:
Bearcat Z1 XT 2010-2014
Bearcat Z1 XT LTD 2011-2014
TZ1 Turbo LXR 2009-2014
TZ1 Turbo LXR LE 2010
Z1 1100 EFI LXR 2010
Z1 LXR 2011
Z1 Sno Pro 2011
Z1 Turbo 2009-2010
Z1 Turbo LXR 2009-2011
Z1 Turbo LXR LTD 2011
Z1 Turbo Sno Pro 2009-2011
Z1 Turbo EXT 2010-2011
Procross F1100 LXR 2012-2013
Procross F1100 Sno Pro LTD 2012-2013
Procross F1100 Turbo LXR 2012-2013
Procross F1100 Turbo Sno Pro ANNIVERSARY 2012
Procross F1100 Turbo Sno Pro 2012-2013
Procross F1100 Turbo Sno Pro LTD 2012-2013
Procross F1100 Turbo Sno Pro RR 2013
Proclimb M1100 Sno Pro 153 LTD 2012-2013
Proclimb M1100 Turbo 153 2012-2013
Proclimb M1100 Turbo Sno Pro 162 2012-2013
Proclimb M1100 Turbo Sno Pro ANNIVERSARY 2012
Proclimb M1100 Turbo Sno Pro HCR 2012
Proclimb M1100 Turbo HCR 2013
Proclimb M1100 Turbo Sno Pro LTD 2012-2013
Proclimb XF1100 Turbo Sno Pro HIGH COUNTRY LTD 2012-2013
Procross XF1100 LXR 2012-2013
Procross XF1100 Sno Pro LTD 2012-2013
Procross XF1100 Cross Tour 2013
Procross XF1100 Turbo LXR 2012-2013
Procross XF1100 Turbo Sno Pro ANNIVERSARY 2012
Procross XF1100 Turbo Sno Pro 2012-2013
Procross XF1100 Turbo Sno Pro LTD 2012-2013
Procross XF1100 Turbo CROSS 2013
XF 9000 Sno Pro LTD 137 2015
XF 9000 137 LXR 2014-2016
XF 9000 137 Sno Pro LTD 2014-2016
XF 9000 141 Sno Pro CROSS 2014-2016
XF 9000 HIGH COUNTRY LTD 2014-2016
ZR 5000 LXR 2014-2017
ZR 9000 LXR 2014
ZR 9000 Sno Pro LTD 2014-2016
ZR 9000 Sno Pro RR 2014-2016
ZR 9000 Sno Pro 2014-2016
ZR 9000 EL TIGRE 2015
M 9000 153 2014
M 9000 HCR 162 2014-2015
M 9000 Sno Pro LTD 162 2014-2016
Order Includes:
4 x Intake Valve: 3007-152
Length: 99mm – 3.89 in
Outer Diameter: 35.9mm – 1.41 in
Material: Stainless Steel
4 x Exhaust Valve: 3007-784, 3007-860
Length: 90mm – 3.54 in
Outer Diameter: 33mm – 1.29 in
Material: Stainless Steel

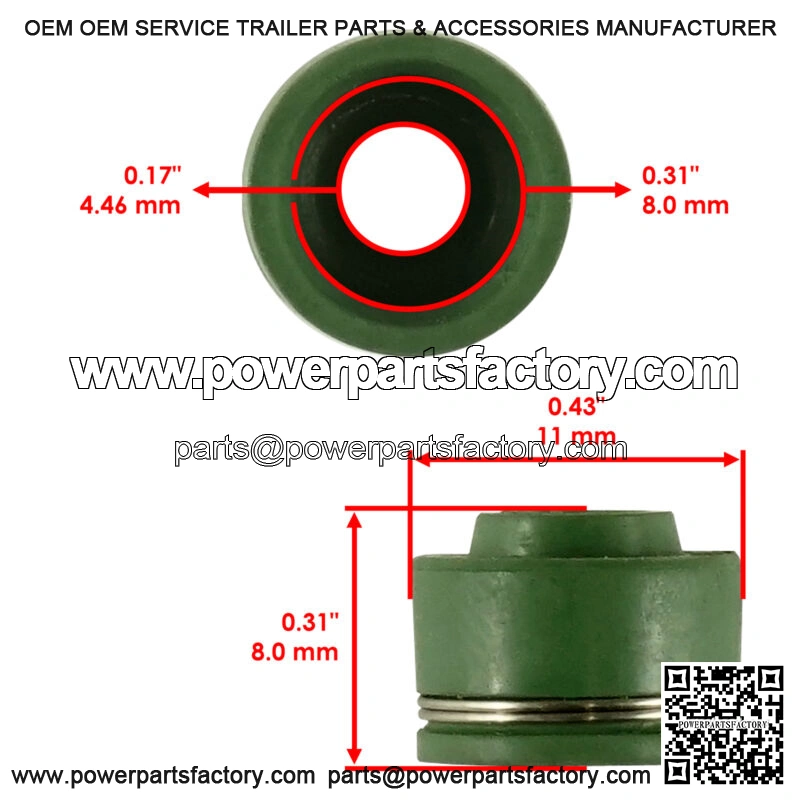

8 x Valve Stem Seal: 3402-226
Length: 11mm – 0.43 in
Width: 8mm – 0.31 in
Inner Diameter: 4.46mm – 0.17 in
Outer Diameter: 8mm – 0.31 in
Material: Plastic
8 x Valve Spring: 3007-625, 3007-154
Length: 47mm – 1.85 in
Outer Diameter: 22.6mm – 0.88 in
Thickness: 3.3mm – 0.13 in
Material: Steel
8 x Valve Tappet: 3402-851
Width: 19.5mm – 0.76 in
Inner Diameter: 26mm – 1 in
Outer Diameter: 28mm – 1.1 in
Material: Metal
